ANALYSIS CONDITION
· Analysis solver : ANSYS CFX V17.2
· Rotor speed : 100rpm (Type B), 80rpm (Type A)
· Outside the reservoir : Opening Pressure
· Free surface : Free Slip Wall
· Fluid properties : (Water)
- Density : 997 [Kg m^-3]
- Viscousity : 0.0008899 [Pa s]
· Numerical model
- Shear Stress Transport Turbulence model
- Frozen-Rotor Interface

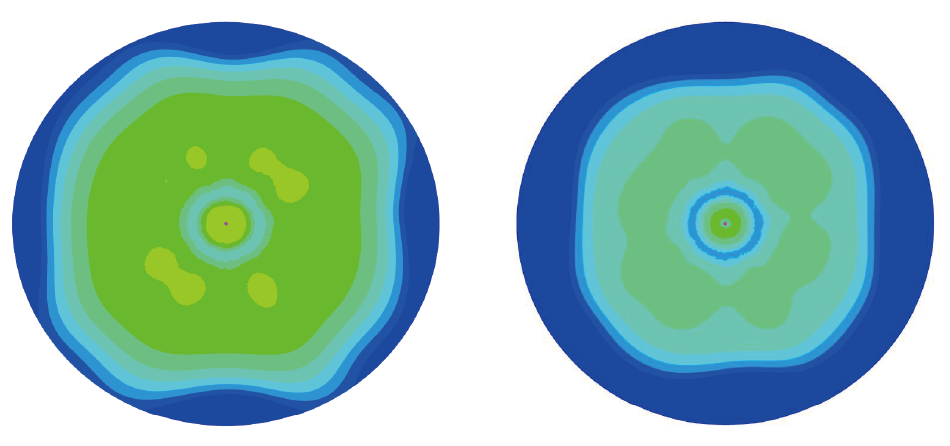

Velocity distribution over the entire area

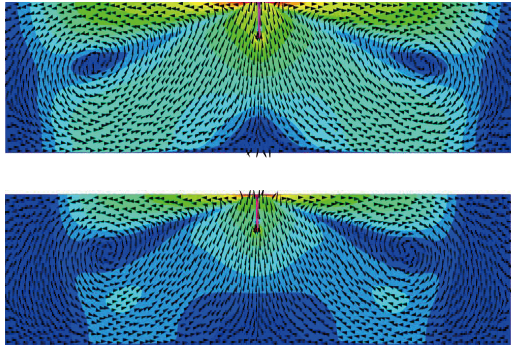

Vector distribution over the entire area

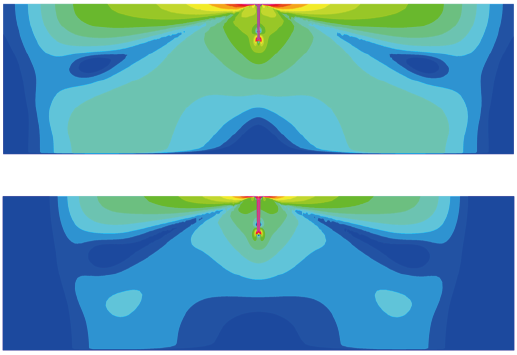

Inlet velocity distribution

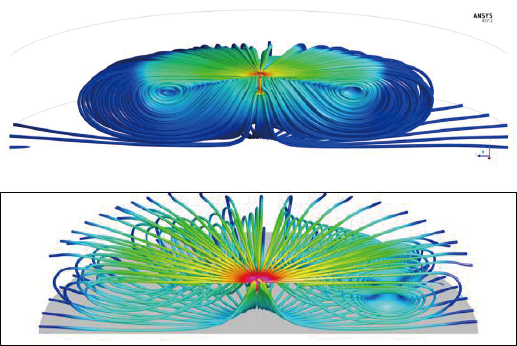

Streamline distribution analysis

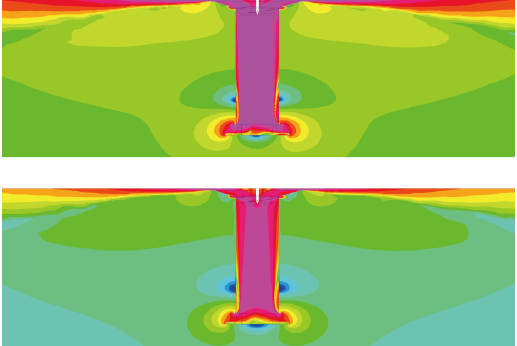

Velocity distribution in horizontal section
